Groups

The Groups menu allows you to set up User talk Groups. The system comes with 20 preconfigured Groups.

Name: The alphanumeric identifier that appears on the Control Panel.

Description: The description given to identify the client that is used exclusively in the System Administration application.

Rx Multicast IP Address: The Multicast IP address on which the IP-224 receives audio.

Rx Multicast IP Port: The Multicast IP port on which the IP-224 receives audio.

Tx Multicast IP Address: The Multicast IP address on which the IP-224 sends audio.

Tx Multicast IP Port: The Multicast IP port on which the IP-224 sends audio.

Tx Multicast Group Port: The Multicast IP port on which the C-Soft sends audio.

Emergency Mode supported: Designates whether the group supports activation of the Emergency Mode.

Selector Image: The image that will appear on the groups's selector.

Assigning/Unassigning Users to/from the Group

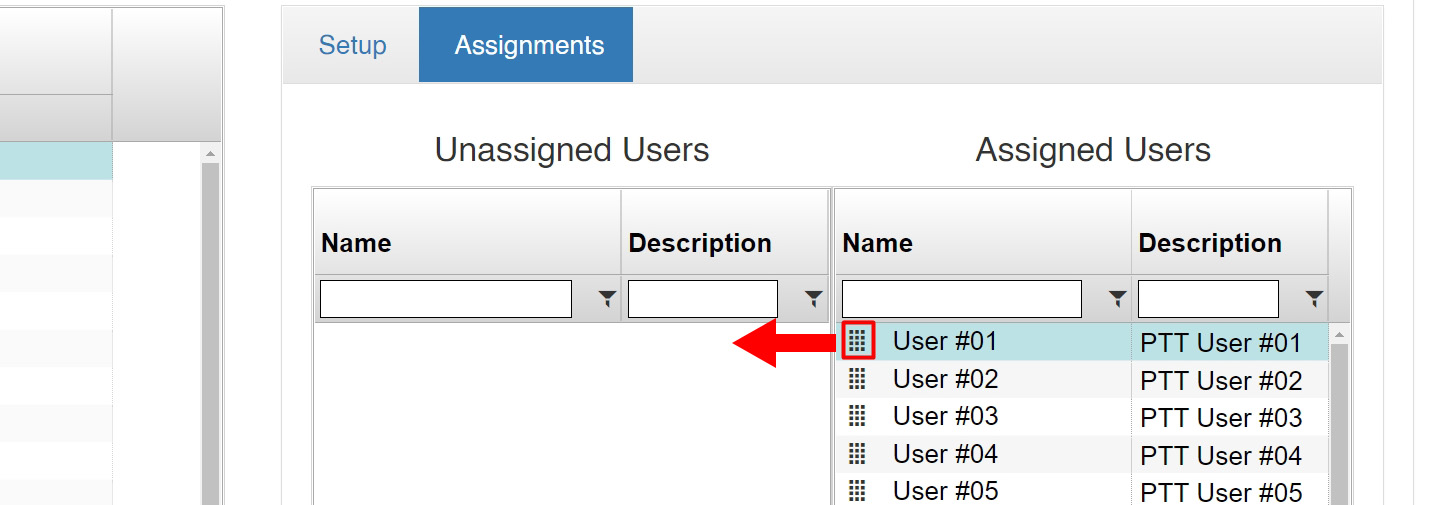

Select the Assignments tab and then drag the User's handle to the Assigned Users list of the Unassigned Users list. Alternatively, double click the User to move them to the opposite list. Click the Save button to save your changes.
